GPS Tracker CalAmp TTU-720-GPRS TTU07G300 2G GSM / GPRS

SKU box 8 calamp TTU07G300
Form Factor: Tracker: Fleet / Asset
Technology: 2G GSM / GPRS
Frequency: 850/900/1800/1900 MHz
Carrier: AT&T
Features: Weatherproof, Internal Battery and Antenna

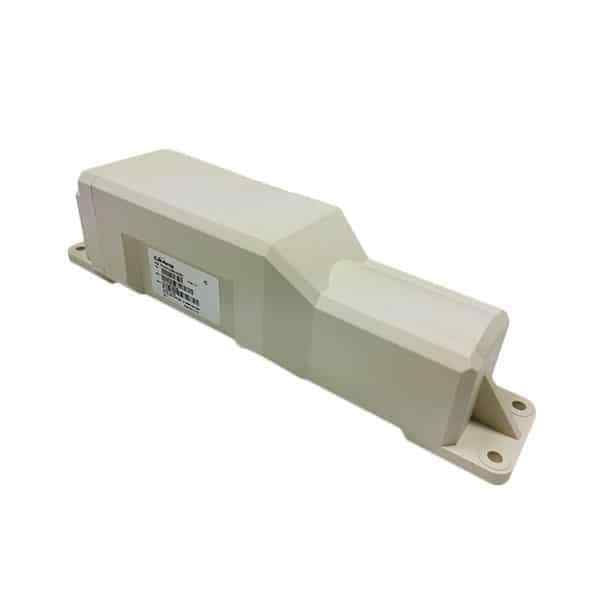

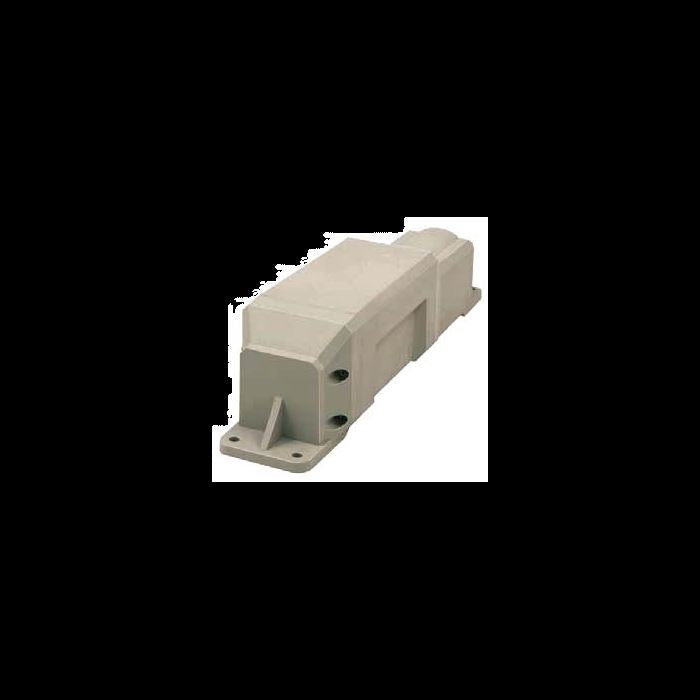

The TTU-720-GPRS is a battery operated non-rechargeable trailer tracking product designed for reliable, multi-year deployments. The TTU-720-GPRS is an ideal solution for managing assets that will be deployed for long periods without maintenance needs.

Competitive Price, Competitive Technology, Competitive Edge
The TTU-720-GPRS high-value tracking unit from CalAmp features a small size, superior GPS performance, and an internal 57 Ah battery. The TTU-720-GPRS is a complete trailer and asset tracking and communications device incorporating next-generation, super-sensitive GPS technology on GPRS, CDMA and HSPA cellular networks for installation in any mobile asset. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the TTU-720-GPRS mountable virtually anywhere in the trailer for easy, inexpensive installations. Messages are transported across the GSM/GPRS network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The TTU-720-GPRS is designed to dramatically reduce cost, power and size while providing excellent field reliability.

The TTU-720-GPRS employs CalAmpメs industry leading on-board alert engine, PEG™ (Programmable Event Generator). This advanced engine monitors external conditions and supports customer-defined exception-based rules to help meet the needs of your application. PEG continuously monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. With PEG, your unique application will meet demanding customer requirements. This behavior can be programmed by CalAmp before shipment, at a customerメs facility, or over-the-air once the unit has been fielded.

Over-the-Air Serviceability
The TTU-720-GPRS also leverages CalAmp's industry leading over-the-air device management and maintenance system, PULS™ (Programming, Updates, and Logistics System). Configuration parameters, PEG rules, and firmware can all be updated over the air. PULS offers out-of-the-box hands free configuration and automatic post-installation upgrades. You can also monitor unit health status across your customers' fleets to quickly identify issues before they become expensive problems.

Experience The Advantage
5000 message cycles on fully charged battery pack. Battery pack is field replaceable (if necessary).
15 years with 0 messages until a final 30 min tracking session
7 years with single message cycle per day on fully charged battery pack
Superior cellular and GPS quality
IP67 sealed and rugged enclosure
Built-in motion sensor
Built-in cellular and GPS antenna for easy installation
Model Number TTU-720-GPRS
Brand CalAmp
Weight 1.000000
Dimensions 57.15 x 57.15 x 266.7mm
Product Family TTU-700 Series
Product Type GPS Tracker
Form Factor Tracker: Fleet/Asset
Technology 2G GSM/GPRS
Frequency Band Band 2 (1900 MHz)
Carrier AT&T
Features Weatherproof
Frequency 850/900/1800/1900 MHz
Chipset 8-bit
RF Connector Internal Antennas
Operating System Support Proprietary
ROHS Compliance yes
Carrier Approvals PTCRB, AT+T, Vodafone, T-Mobile certified
Packing List TTU-720-GPRS
